Integrate with Journeys

Integrate with Journeys

  1. Create and configure a Journey within the dashboard
    • This means you’ll want to add the applicable Workflow, Action, and Document Verification Nodes and set up Journey Outcomes
229229

You can reach Journeys from the sidebar

635635

Next click the "Add Journey" button to create a new Journey

463463

Give your Journey a name and click "Add Journey" to confirm

621621

From here you will enter the Journey Editor and you may start editing your Journey by adding Branches or attaching Nodes to the Start Node.

549549

Once you've finished editing your Journey, save a new Version by clicking "Save" and then activate it by clicking "Set Active"

939939

For Multi-Entity Journeys you may also add Outcome Logic by clicking "Add Reconciliation Outcome"

  1. Next you’ll want to create a Journey Application by making a POST request to https://app.alloy.co/journeys/:journey_token/applications.

In order to make a POST request, you’ll require a few things mentioned below:

Journey token: You can find :journey_token in two places:
- On the Journeys list page at: https://app.alloy.co/v3/dashboard/journeys

10401040

The token can be copied by hovering over it and clicking the clipboard icon

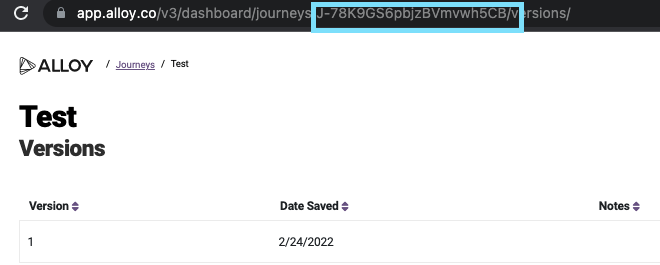

  • In the URL of the Journey view page:
660660

Workflow Secret and Workflow Token: For authorization (See Authorization tab for additional information)

Example POST Request

curl --request POST \
     --url https://demo-qasandbox.alloy.co/v1/journeys/:journey_token/applications \
     --header 'Accept: application/json' \
     --header 'Content-Type: application/json' \
     -u workflow_token:workflow_secret \
     --data '{
     "entities": [
         {
             "entity_type": "person",
             "data": {
                 "address_line_1": "123",
                 "address_line_2": "Test St",
                 "address_city": "New York City",
                 "address_state": "NY",
                 "address_postal_code": "10010",
                 "address_country_code": "US",
                 "birth_date": "1985-01-23",

                 "document_ssn": "123456789",
                 "email_address": "[email protected]",
                 "name_first": "Test",
                 "name_last": "Example",
                 "phone_number": "5555555555"
             },
             "external_entity_id": "my_system_entity_id_123"
         }
       ],
       "do_await_additional_entities": false,
       "external_group_id": "my_system_group_id_456"
     }'

Example Multi-Entity POST Request

For Multi-Entity Journeys, supply a branch_name and entity_type alongside the data payload.

curl --request POST \
     --url https://demo-qasandbox.alloy.co/v1/journeys/:journey_token/applications \
     --header 'Accept: application/json' \
     --header 'Content-Type: application/json' \
     -u workflow_token:workflow_secret \
     --data '{
     "entities": [
         {
             "branch_name": "persons",
             "entity_type": "person",
             "data": {
                 "address_line_1": "123 Fake St.",
                 "address_line_2": "Apt 123",
                 "address_city": "New York",
                 "address_state": "NY",
                 "address_postal_code": "10001",
                 "address_country_code": "US",
                 "name_first": "Test",
                 "name_last": "Person",
                 "birth_date": "1985-01-23"
             }
         },
         {
             "branch_name": "businesses",
             "entity_type": "business",
             "data": {
                 "business_name": "My Business",
                 "address_line_1": "321 Real St.",
                 "address_line_2": "Ste 321",
                 "address_city": "New York",
                 "address_state": "NY",
                 "address_postal_code": "10001",
                 "address_country_code": "US",
                 "name_first": "Business",
                 "name_last": "Inc."
             }
         }
       ],
       "do_await_additional_entities": false,
       "external_group_id": "my_system_group_id_456"
     }'

Example Response:

{
  "journey_application_token": ":journey_token",
  "_links": {
    "self": {
      "href": "/v1/journeys/:journey_token/applications/:application_token"
    }
  }
}

For "streaming" requests

set do_await_additional_entities to true; this will put the Journey into a state where the application will not enter reconciliation conditions until the stream is over, e.g. "do_await_additional_entities": false is passed, allowing a stream of multiple entities to be passed through the Journey until the stream ends.

  1. Create a GET request to retrieve data and response

    Next, you’ll want to make a GET request to retrieve the Journey Application details. The following things must be included in the request:

    • Journey Token
    • Journey Application Token

Example GET Request

curl --request GET \
     --url https://demo-qasandbox.alloy.co/v1/journeys/:journey_token/applications/:application_token \
     --header 'Accept: application/json'

📘

Sandbox and Production URL's

Sandbox URL: https://devsandbox.alloy.co/v1/journeys/:journey_token/applications/:application_token

Production URL: http://devapi.alloy.co/v1/journeys/:journey_token/applications/:application_token

Example Response

Note: The response is the same for both Multi-Entity and Single
Multi-Entity Journeys will have multiple child_entities

{
  "credit_limit": "42",
  "annual_interest_rate": "70",
  "status": "completed",
  "sandbox": false,
  "created_at": 1634059958368,
  "updated_at": 1634059961458,
  "closed_at": 1634059961464,
  "recent_outcome": "Approved",
  "complete_outcome": "Approved",
  "_embedded": {
    "child_entities": [
      {
        "external_entity_identifier": null,
        name: "Test Person",
        token: ":entity_token"
        type: "person"
      }
    ],
    "entity": {
        "external_entity_identifier": null,
        "name": null,
        "token": ":entity_token",
        "type": "group"
    },
    "events": [
      {
        "type": "started_application",
        "timestamp": 1634059958414,
        "entity_token": null,
        "_embedded": {
          "node": {
            "name": null,
            "id": ":node_id",
            "type": "workflow",
            "config": {
              "workflow_token": ":workflow_token",
              "workflow_version_id": 1
            }
          }
        },
        "_links": {}
      },
      {
        "type": "visited_node",
        "timestamp": 1634059958454,
        "entity_token": null,
        "_embedded": {
          "node": {
            "name": null,
            "id": ":node_id",
            "type": "workflow",
            "config": {
              "workflow_token": ":workflow_token",
              "workflow_version_id": 1
            }
          }
        },
        "_links": {}
      },
      {
        "type": "started_evaluation",
        "timestamp": 1634059958531,
        "evaluation_token": ":evaluation_token",
        "entity_token": null,
        "_embedded": {
          "node": {
            "name": null,
            "id": ":node_id",
            "type": "workflow",
            "config": {
              "workflow_token": ":workflow_token",
              "workflow_version_id": 1
            }
          }
        },
        "_links": {
          "evaluation": {
            "href": "/v1/evaluations/:evaluation_token"
          }
        }
      },
      {
        "type": "completed_evaluation",
        "timestamp": 1634059960557,
        "outcome": "Approved",
        "evaluation_token": ":evaluation_token",
        "entity_token": ":entity_token",
        "_embedded": {
          "node": {
            "name": null,
            "id": ":node_id",
            "type": "workflow",
            "config": {
              "workflow_token": ":workflow_token",
              "workflow_version_id": 1
            }
          }
        },
        "_links": {
          "evaluation": {
            "href": "/v1/evaluations/:evaluation_token"
          }
        }
      },
      {
        "type": "visited_node",
        "timestamp": 1634059961272,
        "entity_token": null,
        "_embedded": {
          "node": {
            "name": null,
            "id": ":node_id",
            "type": "outcome",
            "config": {
              "outcome": "Approved"
            }
          }
        },
        "_links": {}
      },
      {
        "type": "completed_application",
        "timestamp": 1634059961453,
        "outcome": "Approved",
        "entity_token": ":entity_token",
        "_embedded": {
          "node": {
            "name": null,
            "id": ":node_id",
            "type": "outcome",
            "config": {
              "outcome": "Approved"
            }
          }
        },
        "_links": {}
      }
    ],
    "journey": {
      "journey_name": "",
      "journey_token": ":journey_token",
      "_links": {
        "self": {
          "href": "/v1/journeys/:journey_token"
        }
      }
    }
  },
  "_links": {
    "self": {
        "href": "/v1/journeys/:journey_token/applications/:application_token"
    }
  }
}
